Fully Automatic Carton Screen Printing Machine

With mature production layout and well-optimized supply chain resources, we guarantee steady product quality and timely delivery for every partner.Powered by strong R&D strength and full-range quality inspection procedures, each equipment is strictly inspected before shipment. Our fully automatic carton screen printing machines come with high positioning accuracy, stable running performance and longer service life.

Our professional fully automatic carton screen printing machines achieve clear printed patterns, even ink laydown and precise color overprinting. They are widely applicable to paper, plastic, acrylic, metal plates and other flat materials, fully matching different printing processing requirements.

This cost-effective printing equipment effectively improves production efficiency and reduces overall operating costs. Green Ohm Machinery keeps providing stable and trustworthy fully automatic carton screen printing machines to meet clients’ bulk processing and long-term production demands.

Feature :

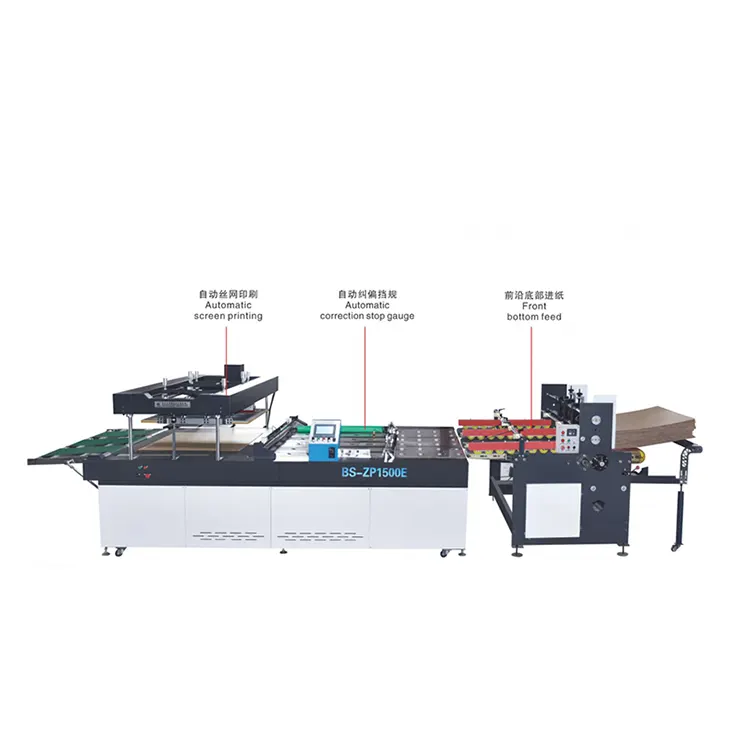

This machine is a fully automated screen printing equipment that integrates automatic paper feedingand printing, developed based on the concept of semi-automatic manual paper feeding; Designed asa cutting-edge bottom automatic paper feeding method, automatic printing, and bridge paper outputto complete the entire fully automated printing process (or enter the supporting drying equipment andautomatic paper delivery machine); Greatly reduce labor costs, enhance production capacity andefficiency. The operation of this machine is simple, easy to learn and understand; Mainly suitable for printing, partial uv and scraping of corrugated cardboard boxes, hollow boards, and wooden box packaging.

1. Control mode: PLC system program control operation. Human face interface machine operation function.

2. Printing power: Servo motor power operation, high-speed and precise stroke stopping.

3. Printing knife power: The self-locking cylinder controls the printing knife and-ink knife, and the pressure can be independently adjusted. It is equipped with dual scraper function.

4. Platform method: Perforated belt, dual high-pressure blowers firmly adhere the printed material on the belt and automatically discharge it stably.

5. Belt power: The servo motor is combined with a planetary reducer to calculate the paper feeding stroke and accurately stop the position.

6. Adjustment method: One click pneumatic print head arm lifting and conveying bridge, convenient for adjusting and loading and unloading the screen.

7. Screen printing method: The fixture unit is equipped with fine adjustment alignment and pneumatic clamping plate configuration, and the mesh distance be adjusted.
