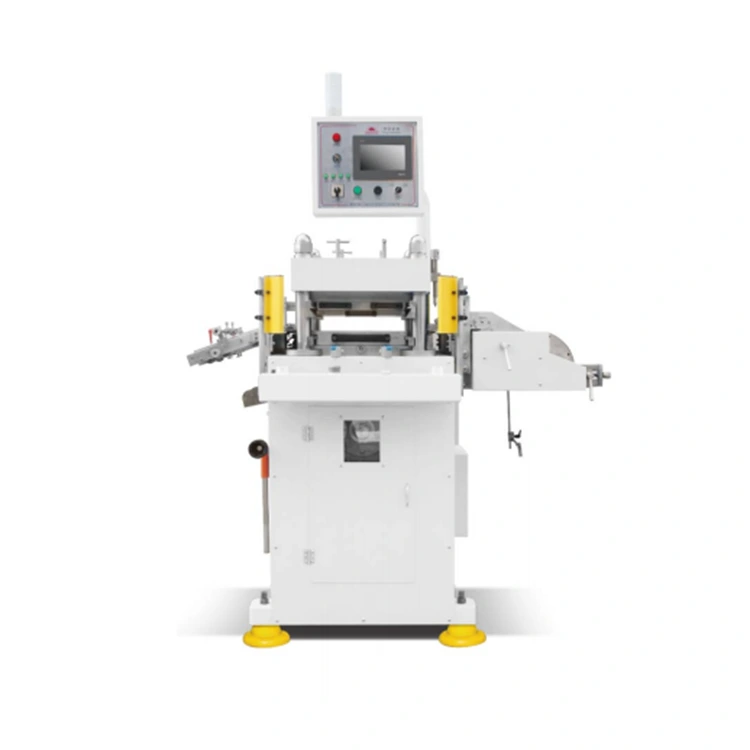

High Precision Trepanning Type Die Cutting Machine
Model:MQ-420/520G
Green Ohm Machinery adheres to a customer-centric corporate culture and is committed to manufacturing high-quality trepanning die cutting machine and high precision Trepanning Type Die Cutting Machine with integrity and professionalism. Relying on our complete production system and optimized supply chain, we deliver reliable products and on-time delivery to honor our commitments to every partner.Supported by continuous R&D investment and strict quality management, each trepanning die cutting machine is rigorously tested for outstanding precision, stability and reliability. Our efficient die cutting machine helps customers enhance productivity and lower operational costs.
Feature :
1. Th ehigh precision Trepanning Type Die Cutting Machine is equipped with a specially designed trepan pin, which ensures accurate and reliable position fixing during operation, effectively improving die cutting accuracy.
2. Adopting an intelligent digital control system, this machine supports secondary and multiple die cutting processes to meet various complex production requirements.
3. The high precision Trepanning Type Die Cutting Machine features strong compatibility, allowing the use of both metal dies and normal dies to adapt to diverse processing applications.
4. Equipped with an automatic oil control system, the machine will automatically send out an alarm prompt once the oil level is insufficient, effectively protecting the equipment and ensuring stable long-term operation.
5. Die cutting pressure can be easily adjusted by setting parameters on the touchscreen. After adjustment, the machine structure can be locked firmly to maintain stable and consistent die cutting pressure for high-quality processing.
Technical Parameters
|
Model |
MQ-320H |
MQ-420H |
|
Max. size of Board |
330x320mm |
440x420mm |
|
Feeding width |
320mm |
420mm |
|
Die cut Speed |
≤200CUTS/MIN |
≤160CUTS/MIN |
|
Precision |
±0.10mm |
±0.10mm |
|
Dimension |
L1500xW1500xH2100mm |
L1650xW1450xH2100mm |
|
Voltage |
380v |
380v |
|
Weight |
2.1T |
2.6T |
|
Total power |
4.5kw |
6kw |
