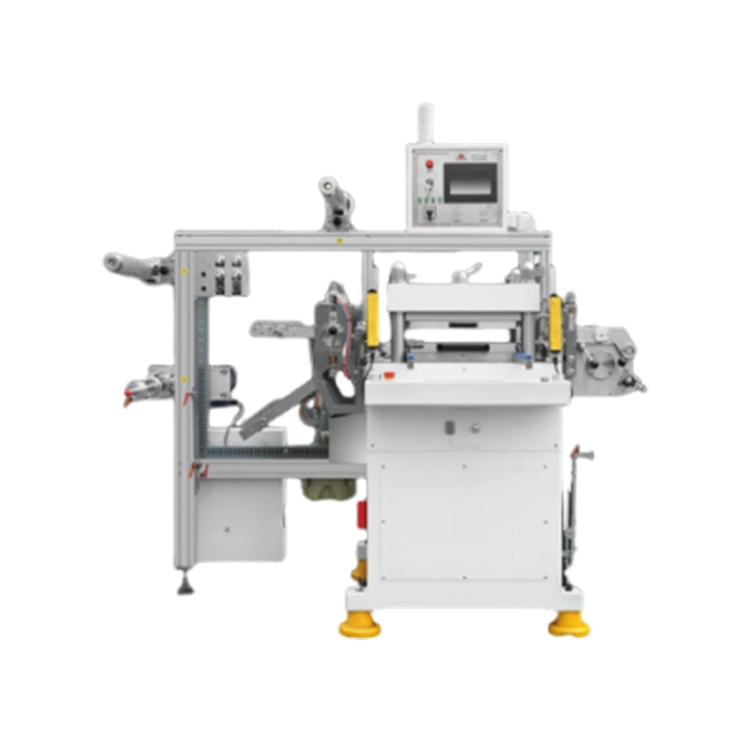

In-Mold Asynchronous Die Cutting Machine
Model:MQ-320/420H-N
Green Ohm Machinery takes R&D as the core to ensure the quality of in-mold asynchronous die cutting machines. Our R&D team uses advanced technology and strict quality control systems, conducts comprehensive testing on each machine’s precision, stability and adaptability, and continuously improves product performance to meet diverse customer needs. We warmly welcome domestic customers to visit our factory and build a win-win future together.
Feature :
For narrow and long special-shaped products,Green Ohm Machinery can customize dies no larger than 280×250mm to match production requirements. Ourasynchronous die cutting machine excels in material efficiency, as asynchronous die cutting technology helps save a significant amount of raw material during processing.
Especially for L-shaped double-sided adhesive tape, our in-mold asynchronous die cutting machine can complete the entire production process in just one cut via asynchronous die cutting. In such applications,Green Ohm Machinery’s die cutting solution effectively saves at least 50% of material, greatly reducing production costs and improving overall material utilization.
Technical Parameters
|
Model |
MQ-320H-N |
MQ-420H-N |
|
Max. size of Board |
330x320mm |
440x420mm |
|
Feeding width |
320mm |
420mm |
|
Die cut Speed |
≤200CUTS/MIN |
≤160CUTS/MIN |
|
Precision |
±0.10mm |
±0.10mm |
|
Dimension |
L2250xW1500xH2100mm |
L2350xW1450xH2100mm |
|
Voltage |
380v |
380v |
|
Weight |
2.1T |
2.7T |
|
Total power |
5.5kw |
8kw |
