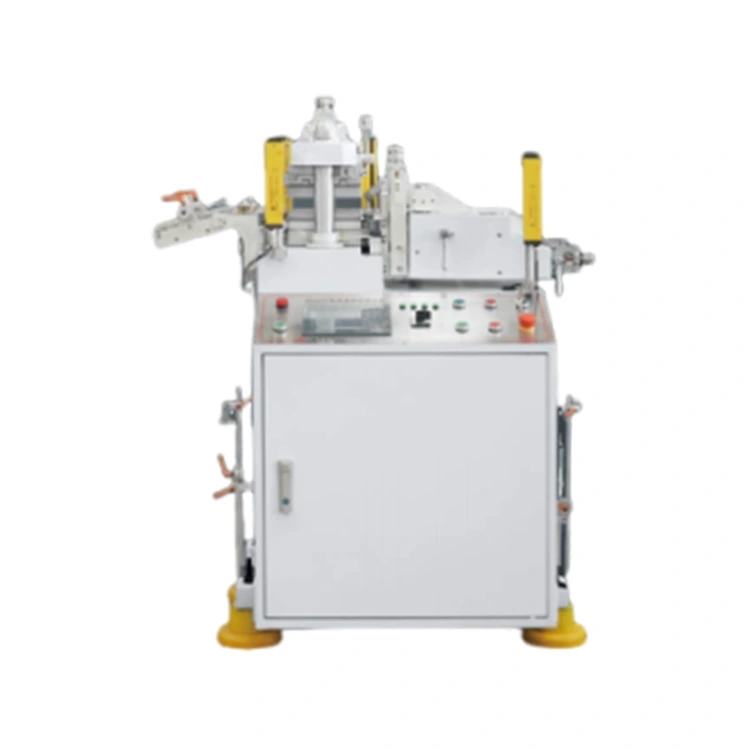

Trepanning Die Cutting Machine
Model:MQ-200B
These robust structures constitute the superior manufacturing standard of Green Ohm Machinery’s Trepanning die cutting machine, effectively minimizing cumulative tolerance. This high-performance die cutting machine greatly enhances production efficiency and die cutting accuracy, bringing substantial and measurable economic benefits to customers in actual production operations.
Feature :
High-Speed Die Cutting Performance
This trepanning die cutting machine delivers exceptional production efficiency, with a maximum die cutting speed of up to 300 cuts per minute, effectively boosting overall processing output.
Precise Positioning Structure
Equipped with a specially engineered trepanning pin design, the machine ensures stable and accurate positioning during operation, effectively reducing deviation and guaranteeing consistent cutting quality.
Intelligent Digital Control System
Adopting an advanced digital control system, the machine supports secondary and multiple die cutting processes flexibly, enabling precise control over complex processing requirements.
Wide Compatibility for Dies
The machine is highly versatile and compatible with both metal dies and conventional standard dies, meeting diverse die cutting application needs and reducing tooling investment for users.
Automatic Lubrication & Alarm System
Built with an automatic oil control system for intelligent lubrication management. When lubricating oil is insufficient, the machine will automatically trigger an alarm to remind operators, ensuring stable running and extending service life.
Precise Pressure Adjustment & Stability Locking
Die cutting pressure can be easily adjusted by setting parameter values directly on the touchscreen. After adjustment, the platen structure can be securely locked to maintain stable and consistent die cutting pressure throughout long runs.
Technical Parameters
|
Model |
MQ-320H |
|
Max. size of Board |
200x180mm |
|
Feeding width |
210mm |
|
Die cut Speed |
≤300CUTS/MIN |
|
Precision |
±0.10mm |
|
Dimension |
L1050xW1000xH2100mm |
|
Voltage |
380v |
|
Weight |
1T |
|
Total power |
3kw |
