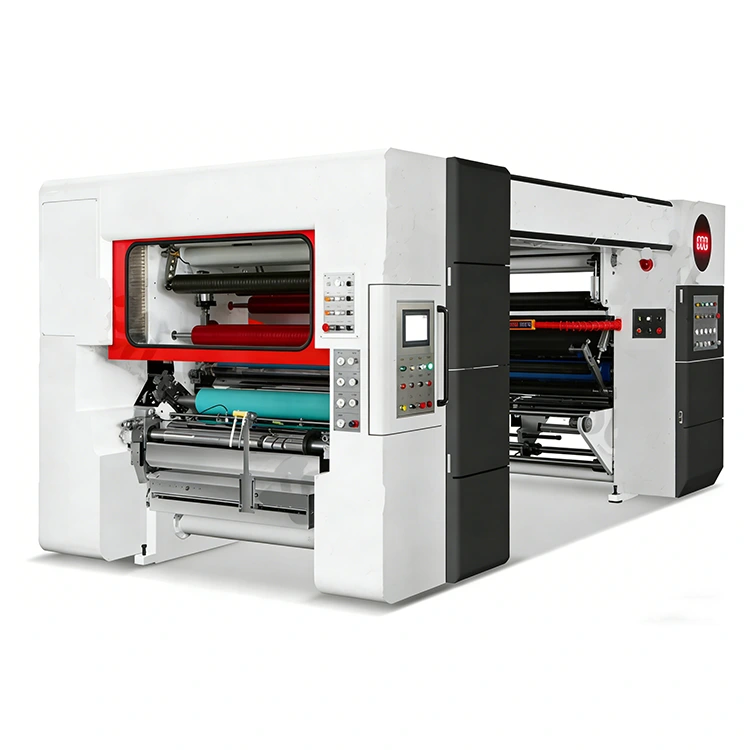

Multi-Functional Solvent-Free Laminating Machine
Green Ohm Multi-Functional Solvent-Free Laminating Machine for Flexible Plastic Film, Aluminum Foil and Packaging Materials – High Precision, Stable Performance, Energy Saving with Easy Operation and Reliable After-sales Service
Feature :
Precise Coating Weight Control & Easy Adjustment
Multi-Functional Solvent-Free Laminating Machine adopts independent servo motor drive and linear independent adjustment, enabling operators to accurately control coating weight with convenient adjustment and excellent repeatability.
High Lamination Quality
The material path is carefully designed. Equipped with a 5-roller transfer coating unit, 3-roller lamination unit, mirror cooling system and servo motor taper winding system, it ensures uniform lamination and neat winding.
High Degree of Humanization
With a reasonably arranged control panel and pneumatic observation and protection device, the Multi-Functional Solvent-Free Laminating Machine is extremely user-friendly and easy to operate.
High Safety, Stability & Reliability
Main electrical components comply with CE standards, and key parts are strictly processed. The machine runs safely, reliably and smoothly even at high speed.
Easy Operation & Application
In addition to the complete mechanical structure, it is supported by professional process technology. The combination of software and hardware allows users to quickly master operation and effectively reduce material waste before formal production.
Technical Parameters
Printing Web Direction: Left to Right
Mechanical Speed: 550 m/min
Max Lamination Speed: 500 m/min (The actual maximum production speed is subject to the quality and properties of the substrate and adhesive used)
Max Coating Width: 1050 mm
Max Web Width: 1050 mm
Min Web Width: 400 mm
Max Unwinding Roll Diameter: 800 mm
Max Rewinding Roll Diameter: 800 mm
Unwinding Tension Range: 3–40 kg (400 N)
Rewinding Tension Range: 4–55 kg (550 N)
Rewinding Tension Taper Setting Range: 100% – 60%
Max Roll Weight: 1,000 kg
Coating Weight Range: 0.8–3 g/㎡
Overall Dimensions: 5100 × 3100 × 2500 mm
Total Power: Approx. 53 KWTotal Weight: Approx. 13500 KG
Machine Paint Color: Ivory White
Suitable Substrate Types
Coating Substrates
|
Substrate |
Thickness |
|
BOPP |
12–80 μ |
|
PETP |
10–30 μ |
|
LDPE,LLDPE |
30–200 μ |
|
OPA (Oriented Nylon) |
12–18 μ |
|
Nylon Cast |
30–80 μ |
|
PP Cast |
60–150 μ |
