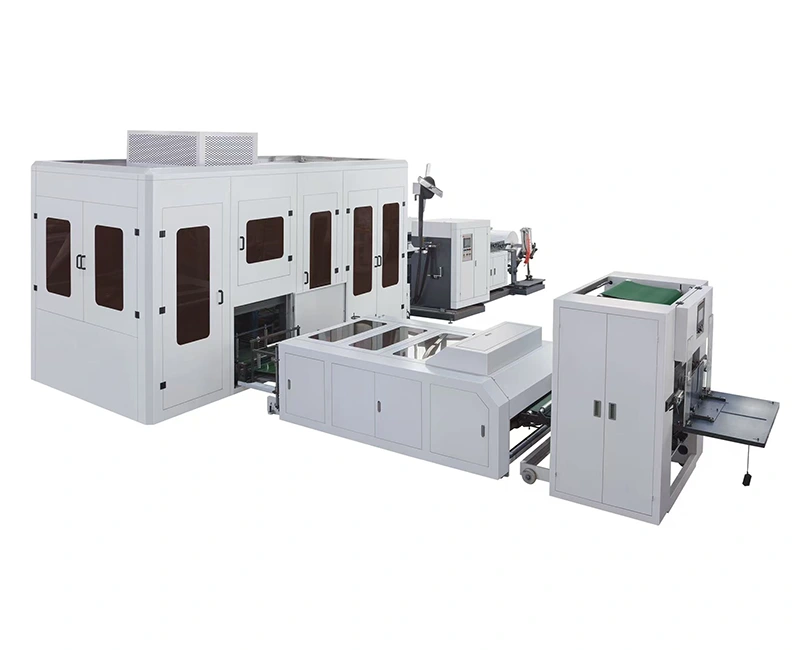

Automatic Multi-Function Non Woven Bag Making Machine
As a leading specialist in the industry, Green Ohm manufactures and supplies high-quality non-woven bag making machinery. Green Ohm's automatic multi-function non woven bag making machine features full automation, ultrasonic sealing for firmness, and versatile production of various bag types. It boasts high speed, easy touchscreen operation, and eco-friendly performance, cutting costs efficiently.
Green Ohm specializes in the production of non-woven bag making machines, non-woven cross-cutting machines, and zipper bag making machines.At Green Ohm, our focus is simple: Quality builds trust, and we are constantly improving to serve you better.
This fully automatic multi-function non woven bag making machine integrates an automated control system and ultrasonic bonding technology, achieving a revolutionary non-woven fabric bag making process. Using non-woven fabric as raw material, this equipment can produce bags of various specifications and shapes, such as gift bags, shopping bags, flat bags, T-shirt bags, drawstring shoe bags, and pillow bags, offering significant versatility. Its features include wide applicability, high production speed, and stable product quality.
-
D-cut Non Woven Bag
-
Fodable Non-woven Bag
-
Non Woven Drawstring Bag
-
Non Woven Handle Bag
-
Non Woven Vest Bag
-
Non-woven Flat Pocket Bag
-
Zippered Non Woven Bag
Key Features
Optional hydraulic punching unit designed for T-cut bag making
Advanced microcomputer control for stable and reliable operation
Stepping motor drive system, with servo motor control available on request
Flexible bag length setting to meet different production requirements
High-precision photoelectric sensor for accurate and stable tracking
Automatic shutdown function when labels are missing or misaligned
Integrated automatic punching, counting, and alarm system
Independent temperature control with smooth and consistent sealing performance, supported by EPC control
Automatic feeding system to improve efficiency and reduce manual operation
Technical Parameters
|
Model |
WFB-DT600 |
|
Max width of material |
1200mm |
|
Max bag-making width |
600mm |
|
Max bag-making length |
700mm |
|
Material thickness range |
20-80g |
|
Production speed |
40-90pcs/min |
|
Total power |
8kw |
|
Machine weight |
2500kg |
|
Overall Dimension |
78000X1700X2000mm |
