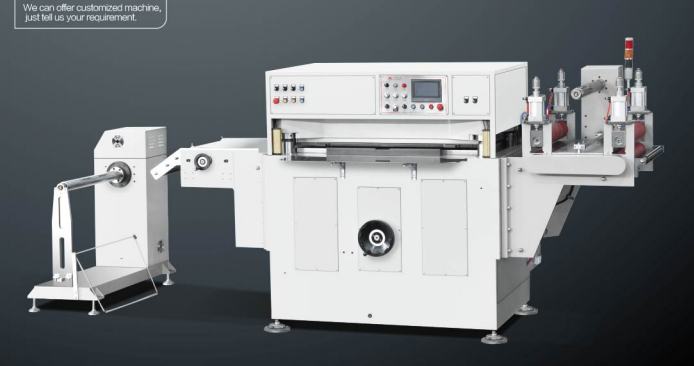

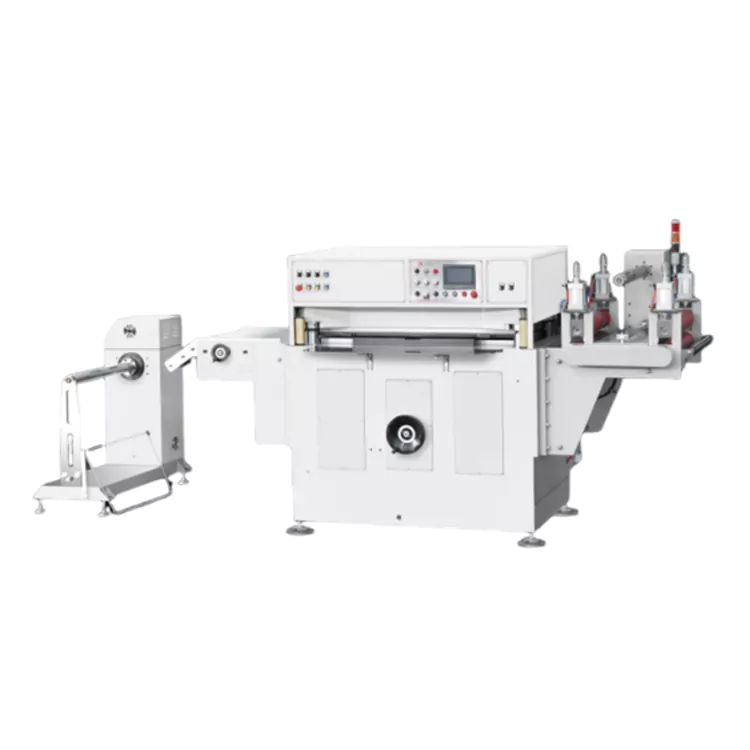

Fully Automatic Big Size High Precision Die Cutting Machine
Model:MQ-1250
Greenohm Machinery is an experienced manufacturer committed to premium automatic die cutting machines. Our Automatic Roll Laminating and Slitting Machines deliver high-precision die cutting, automatic material handling, and continuous stable operation, greatly improving production efficiency. Strict quality control systems ensure consistent performance and durability. Suitable for various packaging and printing applications, they earn trust globally. Domestic and international customers are welcome to visit our factory for cooperation.
Feature :
The production line integrates unwinding, vacuum feeding (with left-right adjustable feeding position), servo-driven material pulling & pushing, die cutting, waste rewinding and final product rewinding — all completed in one fully automatic process.
The Automatic Roll Laminating and Slitting Machine uses a servo motor for material pulling and pushing, enabling both kiss cutting and through cutting.
The main machine body is constructed of cast iron for a long service life. It is equipped with a separate motor for waste rewinding, and a magnetic clutch to control rewinding tension, making operation easier and more stable.
Parameters
| Model | MQ-1250 |
| Max.size of Board | 640x1250mm |
| Feeding width | 620mm |
| Die cut Speed | ≤50CUTS/MIN |
| Precision | ±0.10mm |
| Dimension | L4000xW2600xH2000mm |
| Voltage | 380v |
| Weight | 7T |
| Total power | 12kw |
