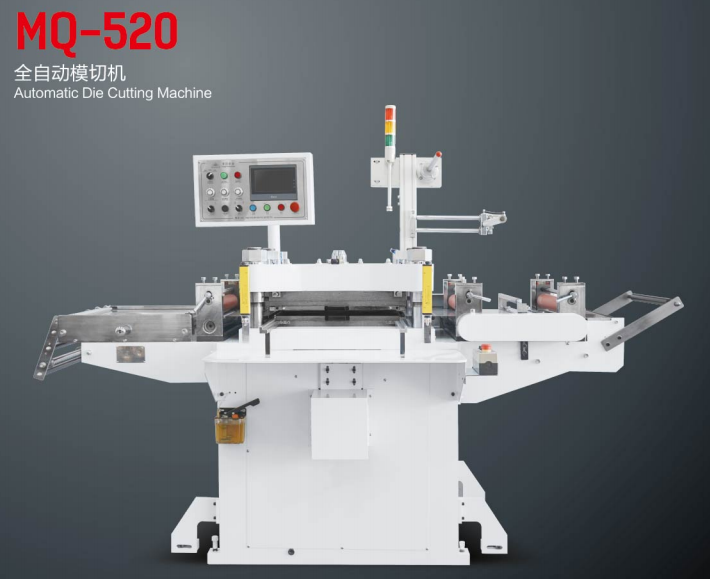

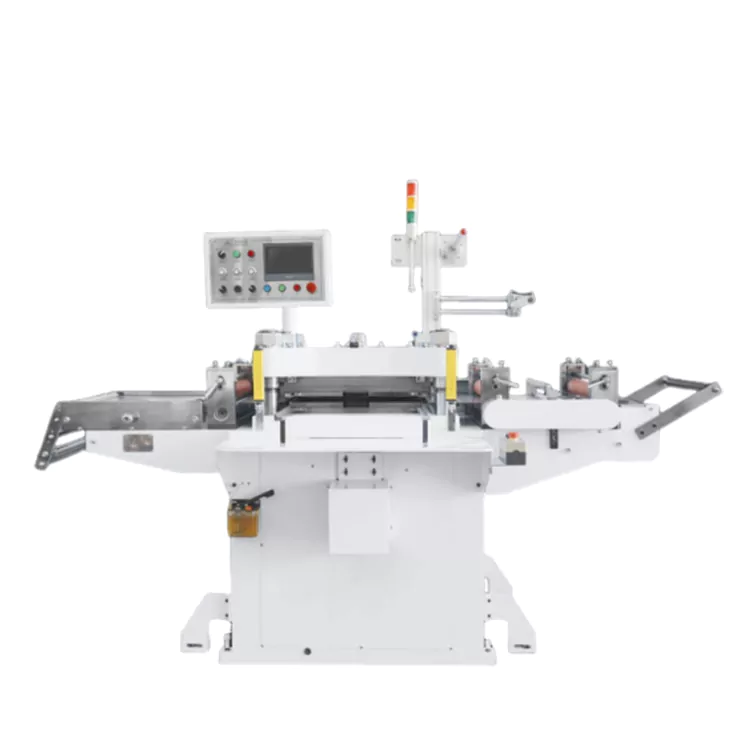

High Speed Fully Automatic Label Die Cutting Machine for Anti-Counterfeit Labels
  • High Speed Fully Automatic Label Die Cutting Machine for Anti-Counterfeit LabelsHigh Speed Fully Automatic Label Die Cutting Machine for Anti-Counterfeit Labels

High Speed Fully Automatic Label Die Cutting Machine for Anti-Counterfeit Labels

Model:MQ-520
Greenohm Machinery boasts rich experience in developing and manufacturing automatic die cutting machines. Our High Speed Fully Automatic Label Die Cutting Machine for Anti-Counterfeit Labels feature advanced control systems, high-precision cutting, automatic waste stripping, and stable heavy-duty operation. Strict quality inspection ensures excellent performance and long service life. These machines greatly enhance production efficiency and reduce costs for packaging enterprises. We invite global partners to visit our factory for technical communication and business talks.

Feature :


This High Speed Fully Automatic Label Die Cutting Machine for Anti-Counterfeit Labels is specially designed for high-precision die cutting of adhesive labels, film labels and anti-counterfeit labels. It works perfectly with roll-to-roll, flexo, screen, rotogravure and anti-counterfeit printing lines.

It adopts a floating feeding system and automatic taper tension control, ensuring stable material feeding and tension, with easy rewinding and waste removal.

The cast iron frame and in-house CNC machining guarantee high rigidity, precision, stability and long service life. The closed oil system and backlash-free gearbox reduce friction, lower noise and double gearbox durability.

With three operation modes (single, continuous, jogging) and automatic lubrication, it is simple to operate. It runs at 260 cuts per minute, 50% faster than traditional models. Servo transmission ensures high cutting accuracy at high speed and prolongs tool life.

Equipped with independent unwind unit, vacuum feeding table and waste stripping structure, it supports large-size, kiss cut and through cut (conveyor required for through cut).


Parameters


Model MQ-520
Max.size of Board 520x520mm
Feeding width 520mm
Die cut Speed ≤100CUTS/MIN
Precision ±0.10mm
Dimension L2400xW2000xH2100mm
Voltage 380v
Weight 3.3T
Total power 6.5kw
